W-0502 Food Grade Quality EPDM, white, smooth. Hose designed for+160°C steam and hot water
Suitable for washing service in dairy factory and equipment. Suitable for delivery of liquid foodstuffs, such as fruit wine, milk, sprits, drink water, soda water
หมวดหมู่ :
Food & Chemical Hoses
รายละเอียดสินค้า

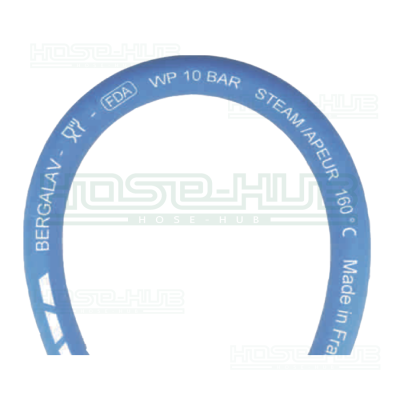

W-0502 Food Grade Quality EPDM
Application: Hose designed for+160°C steam and hot water Suitable for washing service in dairy factory and equipment. Suitable for delivery of liquid foodstuffs, such as fruit wine, milk, sprits, drink water and soda water
Technical Description : Tube: Food grade quality EPDM, white, smooth.
Reinforcement: Synthetic textile.
Cover: Weather resistant EPDM, blue , smooth.
Temperature Range :
From -30° C up to +160°C
Standard/Approval :
EU regulations No.1935/2004,2023/2006
FDA regulation No.21 CFR 177.2600.
French legislatin.
| Size(inc.) | Internal diameter. (mm.) | External diameter. (mm.) | Working Pressure (bar) | Burst (bar) | Min Bending Radius(mm) | Appros Weight (kg/mm) | Max Length(m) |
| 3/8" | 10 | 18 | 10 | 30 | 75 | 0.25 | 40 |
| 1/2" | 13 | 22 | 10 | 30 | 95 | 0.35 | 40 |
| 5/8" | 16 | 25 | 10 | 30 | 110 | 0.41 | 40 |
| 3/4" | 19 | 29 | 10 | 30 | 135 | 0.54 | 40 |
| 1" | 25 | 36 | 10 | 30 | 180 | 0.74 | 40 |
