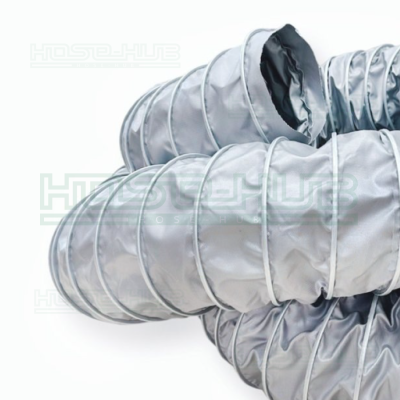

High Temperature Ducting - EIHD
Common Applications
Ideal for diesel engine test bed, vehicle exhaust emissions, high temperature boiler gas extraction, for exhaust equipment, engine structure, heating engine, solid such as dust, powder and fiber , gas environment such as steam and smoke, dust and extraction plant , Ventilators, aircraft equipment and military reconcile bellows and compressors, low pressure environments such as construction machinery, coal mines. Aircraft,Automotive,Brick Kilns, Cold Air Supply, Defroster/Heater Hose, Diesel/Engine Exhaust, Exhaust Systems, Foundries, Fume Exhaust, Garage Exhaust, Heater, High Temperature Applications
Constructions
Hose materials: Double-ply silicone coated fiberglass fabric
Helix: Zinc coated steel wire
Features
- Ideal for high temperature fume control & vehicle exhaust applications with external abrasion
- Fabric is locked around a coated steel wire by a metal strip formed into a clip
- Extremely compressible
- Good resistance to high temperature up to 450°C
- Extremely flexible
- Outstanding resistance to external abrasion
- Metal strip acts as a wearstrip
- 70°C to +400°C (short time to 450°C)
Standard length: 10 meters
| Part No. | ID | OD | Bending Radius (mm) | Working Pressure (bar) | Weight (kg/meter) |
| EIHD0038 | 38 | 50 | 40 | 0.450 | 0.550 |
| EIHD0040 | 40 | 52 | 42 | 0.440 | 0.580 |
| EIHD0050 | 50 | 62 | 44 | 0.380 | 0.600 |
| EIHD0055 | 55 | 67 | 46 | 0.350 | 0.630 |
| EIHD0060 | 60 | 72 | 50 | 0.320 | 0.650 |
| EIHD0065 | 65 | 77 | 54 | 0.290 | 0.680 |
| EIHD0070 | 70 | 82 | 58 | 0.260 | 0.700 |
| EIHD0075 | 75 | 87 | 62 | 0.230 | 0.720 |
| EIHD0080 | 80 | 92 | 66 | 0.200 | 0.750 |
| EIHD0090 | 90 | 102 | 70 | 0.140 | 0.780 |
| EIHD0100 | 100 | 112 | 72 | 0.120 | 0.800 |
| EIHD0120 | 120 | 132 | 82 | 0.090 | 0.850 |
| EIHD0125 | 125 | 137 | 92 | 0.085 | 0.870 |
| EIHD0130 | 130 | 142 | 101 | 0.075 | 0.900 |
| EIHD0140 | 140 | 152 | 110 | 0.060 | 0.950 |
| EIHD0150 | 150 | 162 | 113 | 0.050 | 1.000 |
| EIHD0160 | 160 | 172 | 120 | 0.045 | 1.070 |
| EIHD0170 | 170 | 182 | 127 | 0.040 | 1.130 |
| EIHD0175 | 175 | 187 | 131 | 0.040 | 1.160 |
| EIHD0180 | 180 | 192 | 134 | 0.040 | 1.200 |
| EIHD0200 | 200 | 212 | 148 | 0.030 | 1.320 |
| EIHD0210 | 210 | 222 | 158 | 0.028 | 1.420 |
| EIHD0225 | 225 | 237 | 166 | 0.025 | 1.480 |
| EIHD0250 | 250 | 262 | 183 | 0.020 | 1.650 |
| EIHD0275 | 275 | 287 | 201 | 0.015 | 1.810 |
| EIHD0300 | 300 | 312 | 218 | 0.010 | 1.970 |
| EIHD0350 | 350 | 362 | 253 | 0.007 | 2.290 |
| EIHD0360 | 360 | 372 | 265 | 0.005 | 2.350 |
| EIHD0400 | 400 | 412 | 288 | 0.005 | 2.610 |
| EIHD0450 | 450 | 462 | 318 | 0.004 | 3.000 |
| EIHD0500 | 500 | 512 | 358 | 0.004 | 3.250 |
| EIHD0550 | 550 | 562 | 480 | 0.003 | 3.550 |
| EIHD0600 | 600 | 612 | 528 | 0.003 | 3.890 |
